front

🌍 DatAtlas

DatAtlas allows you to create a map of the territory on the fly by embedding data from different sources: open sourced data but also crowdsourced data

All infos about the front and the back are stored here

React Front using kepler.gl

Front Setup

more infos here WIP

Using docker

The easiest way to launch datAtlas can be by using docker-compose

1. Clone the repo

   https://github.com/datatlas-erasme/front.git

2. Copy env.example and rename it into .env
3. Put your mapbox token in the .env file
4. Launch DatAtlas

   docker-compose up

Now you can access the server trough http://localhost:5007

Manually

Requirements

• nodejs
• a mapbox api access token

1. Clone the repo

   https://github.com/datatlas-erasme/front.git

2. Copy env.example and rename it into .env
3. Put your mapbox token in the .env file

[WIP TODO]

• Change the backend var URl

1. Install and start npm

   npm install npm start

Back Setup

more infos here WIP

How does datatlas work [WIP]

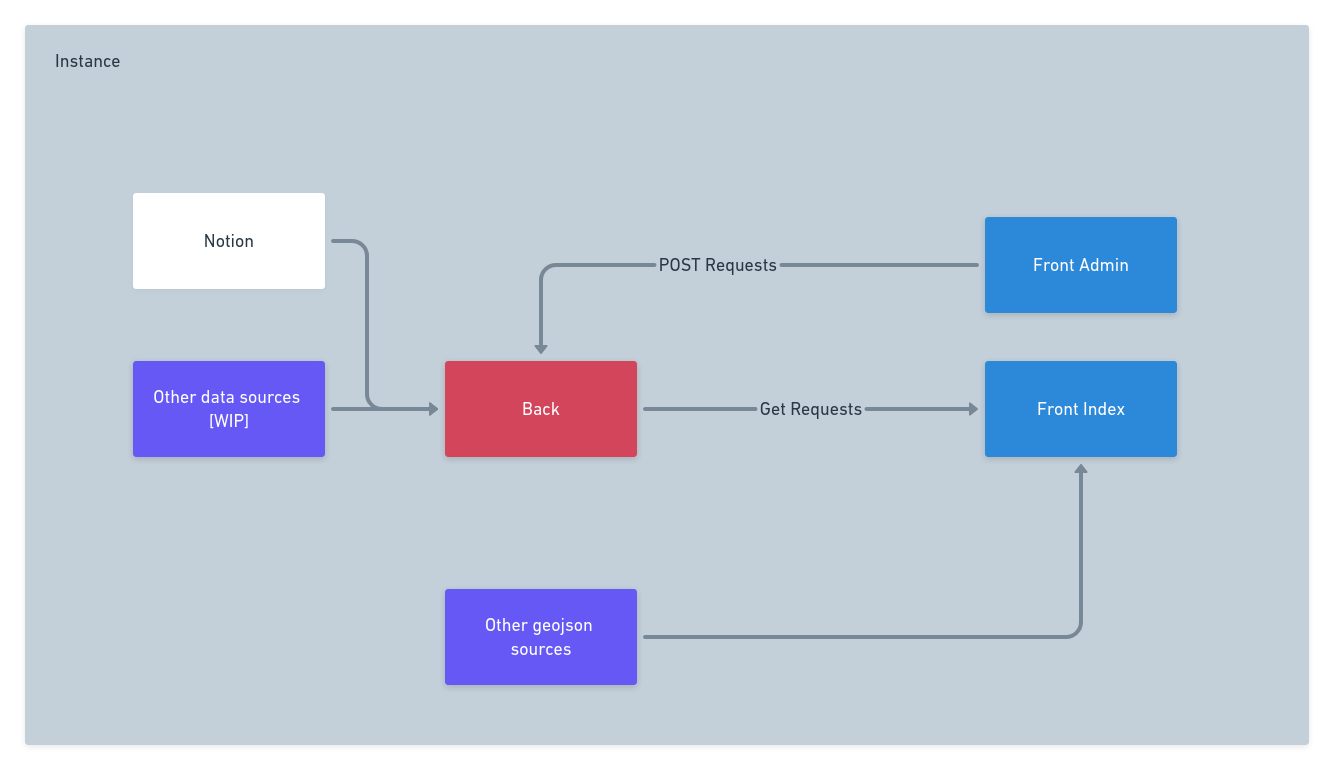

Datatlas is made of a front and a back

The front is a keplergl surcharged with a styling and theme management [WIP]

The back is here to give the front the styling,dataset configuration and urls He is also able to handle notion tables he converts into a readable keplergl json format (and soon other unconventionnal data sources / unconventionnal => no geojson )

The front needs the back server to know :

• wich data layers he needs to load
• wich name he has (ex: Datatlas-Industries)
• wich optionnal button he has (ex: crowdsourcing buttons to add a new point on the map)
• how are the layers and filters configured by default

two API routes are used for it :

GET api/

more infos on routes here

Production

DatAtlas is not ready for production yet
